Products // W9DN

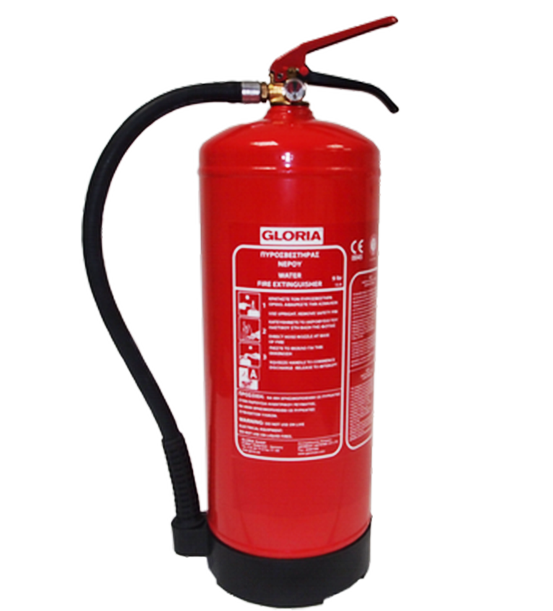

A made in Germany fire extinguisher by Gloria GmbH Europe’s leading manufacturer of fire extinguishers and fire fighting equipment. The W9DN water unit is environmentally safe and ideal for protecting Wood, Paper, Straw, Textiles.
Water fire extinguishers are suitable for use in environments containing solid combustible materials such as wood, paper and textiles. It is important to remember that water conducts electricity and should not be used around electrical equipment.
The cylinder is manufactured from aluminium steel, valve made from brass with chromium coating and handle assembly is metal. The valve includes a pressure gauge for permanent pressure control as well as a check valve for independent external pressure check and due to the lever valve the flow can be interrupted at any time. The cylinder is excellent corrosion resistant by a special internal polyethylene lining coating procedure.
Approved according to European Standard EN 3 and the german DIN, cylinder and complete extinguisher assembly approved by TÜV CERT according to European Pressure Equipment Directive (PED), CE marked, cylinders 100% pressure tested.
PRODUCT KEY FEATURES
- Stored Pressure Operated
- Easy squeeze grip operation
- Fully refillable
- Moisture, high temperature and UV resistance
- Controlled discharge
- Internal polyethylene lining
- Strong protective base
- Spray nozzle
- Easy-to-read gauge tells you fire extinguisher is charged and ready for use
- Informative sticker (English/Greek) using graphics to show steps required to operate extinguisher
- Easy-to-pull safety pin
- Tough impact resistant metal valve, handle & lever
- Long flexible high-pressure hose with handle
- 10 year limited warranty
- Powder coated cylinder for corrosion protection
- Marine Certification
PRODUCT TECHNICAL CHARACTERISTICS
Fire agent: Water
Net agent weight: 9 liters
Unit weight (Average): 13,4 kg
Height: 620 mm
Cylinder Diameter: 190 mm
Discharge time: 45 seconds
Discharge range: 4 meters
Operating pressure: 7 bar
Fire rating: 21A
Cylinder: Aluminium
Valve: Brass made with chromium plating
Valve handle: Metal
Temperature Range: 5°C to 60°C
Expellant: Nitrogen
Please contact us for any documents and information needed.
