Products // PD9GA

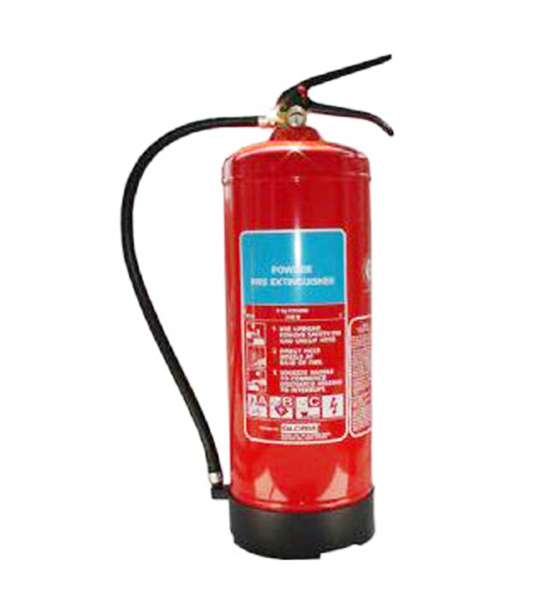

A made in Germany fire extinguisher by Gloria GmbH Europe’s leading manufacturer of fire extinguishers and fire fighting equipment. The PD9GA powder unit is environmentally safe and has a universal use against A,B and C fire classes which make them ideal for protecting wood, paper, straw, textiles,petrol, diesel, oils, paint paraffin,methane, propane, natural gas and electrical appliances etc.


Powder fire extinguishers are ideal for use in mixed risk environments and offer excellent all round fire protection. With a unique class C rating, powder fire extinguishers are the only effective solution for fires involving flammable gases.


Dry chemical extinguishers interrupt the chemical reaction of the fire by coating the fuel with a thin layer of powder, thereby separating the fuel from the surrounding oxygen.


The cylinder is manufactured from aluminium and the valve assembly is metal. The valve includes a pressure gauge for permanent pressure control as well as a check valve for independent external pressure check and due to the lever valve the flow can be interrupted at any time. The cylinder is excellent corrosion resistant by a special internal polyethylene lining coating procedure. And is highly resistant to moisture, high temperature and UV radiation.


Approved according to European Standard EN 3 and the german DIN, cylinder and complete extinguisher assembly approved by TÜV CERT according to European Pressure Equipment Directive (PED), CE marked, cylinders 100% pressure tested.

PRODUCT KEY FEATURES

  •     Stored Pressure Operated
  •     Easy squeeze grip operation
  •     Fully refillable
  •     Moisture, high temperature and UV resistance
  •     Controlled discharge
  •     Internal polyethylene lining
  •     Spray nozzle
  •     Strong protective base
  •     Easy-to-read gauge tells you fire extinguisher is charged and ready for use
  •     Informative sticker (English/Greek) using graphics to show steps required to
        operate extinguisher
  •     Easy-to-pull safety pin
  •     Tough impact resistant metal valve, handle & lever
  •     Long flexible high-pressure hose with handle
  •     10 year limited warranty
  •     Powder coated cylinder for corrosion protection
  •     Marine Certification

PRODUCT TECHICAL CHARACTERISTICS

Fire agent: Gloria – Glutex ABC Dry powder

Net agent weight: 9 kg

Unit weight (Average): 13,7 kg

Height: 610 mm

Cylinder Diameter: 182 mm

Discharge time: 16 seconds

Discharge range: 6 meters

Operating pressure: 15 bar

Fire rating: 43A / 233B / C

Cylinder: Aluminium

Valve: Brass made with chromium plating

Valve handle: Metal

Temperature Range: -30°C to 60°C

Expellant: Nitrogen

Please contact us for any documents and information needed.
